Fully Draw out MCCs
KANDI offers and manufacture fully draw out MCCs to reduce maintenance downtime for application of Power Plants, Process industry etc. These modules are fully interchangeable for all identical units having positive Guidance, smooth movement and perfect alignment of contacts.

Key Features:
• Fully draw out with Service, test and maintenance position.
• Telescopic Rails and Racking Screw.
• Silver plated Power, control & earthing contacts.
• Module size ranges from 150mm to 900mm in step of 50mm
• Facility of module padlocking in position / Interlocking.
• Power draw out Contacts of rating 125A, 400A &630A
• Spring Loaded Safety shutter arrangement

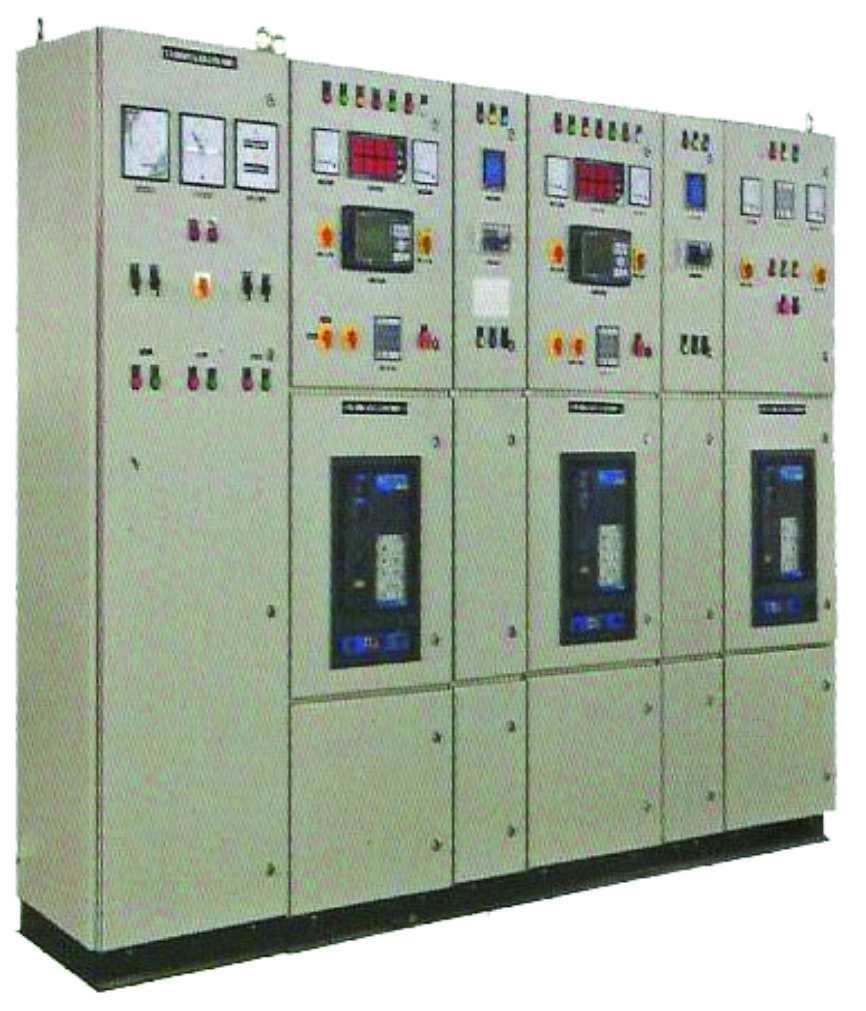

KANDI DG AMF & Synchronising Panels
We are expert in manufacturing of AMF (Auto Mains Failure) & DG synchronizing panels which are used for automatic changeover from E.B mains to DGs at the time of E.B failure. When the E.B mains supply is restored, the system automatically changes back and stops the DGs.
Features
• Suitable for 7.5 kVA to 2200 kVA DGs
• PLC/Microprocessor/ Relay based AMF panels
• Protection available Over current, Earth Fault, Over voltage, Under voltage, Reverse Power, loss of excitation etc.
• Auto start/stop, Emergency stop
• Load Management, Sharing & Control

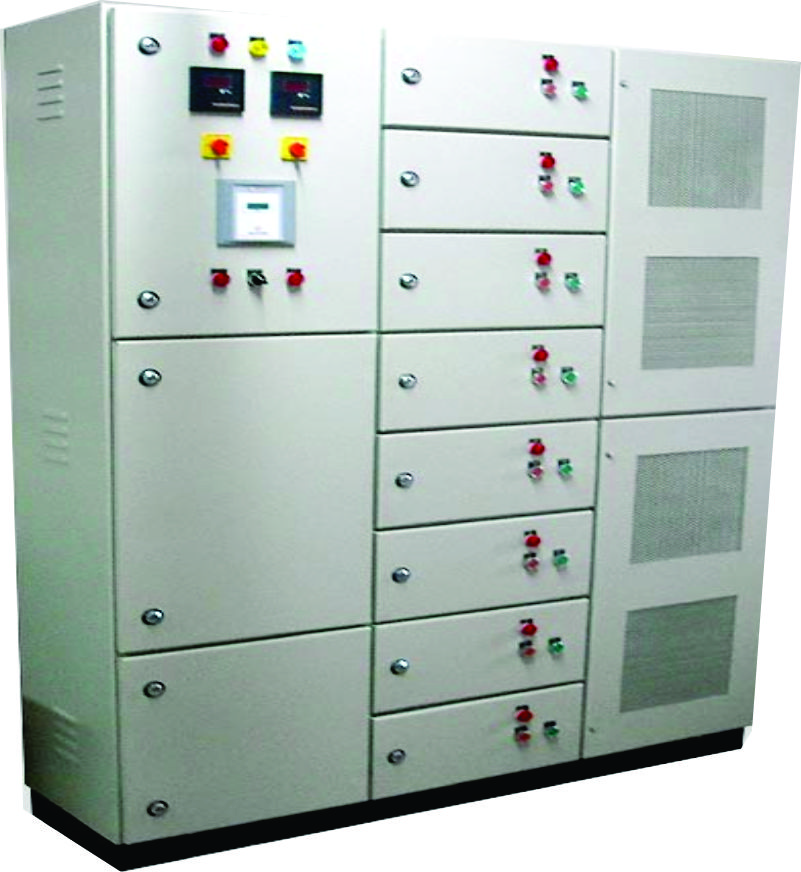

KANDI APFC Panels:
Electrical loads such as motors can cause electrical systems to be very inductive, which results in very 'lagging power factor' i.e. wastage of energy. The simple solution to maintain the power factor in required range is to connect or disconnect the power factor correction capacitors. Manual switching is just impossible for rapidly fluctuating loads and hence an automatic control system is required which continuously monitors the power factor and make appropriate corrections to maintain it within the required range. KANDI Automatic Power Factor Correction System is unique with its Custom Based Design, based on the Load Study Conducted.
• Load Management, Sharing & Control

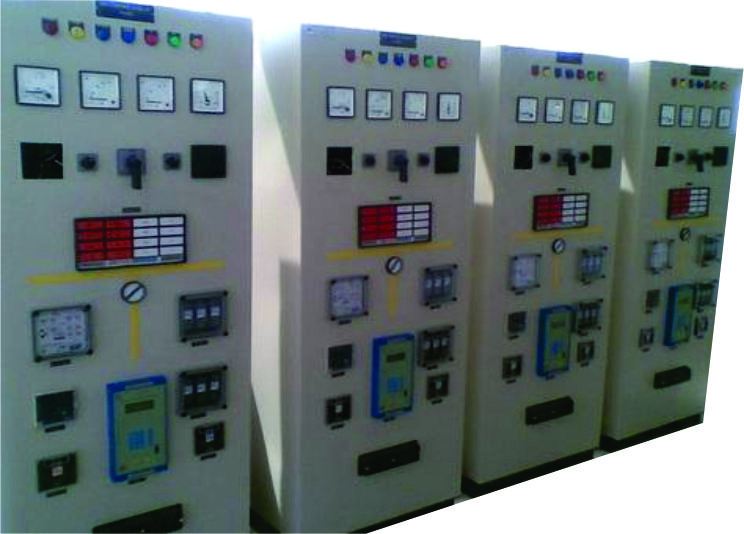

KANDI Control & Relay Panels
We manufacture Control & Relay Panels (CRPs) for both indoor and outdoor installations used for the protection of electrical networks ranging from 11kV to 220kV.
Features:

• Feeder protection panel for both incoming and outgoing lines
• Transformer panel covering both HV and LV side protection
• Electromechanical, analog & Numerical relays from manufacturers like Siemens, Alstom, ABB, Schneider, GE etc.


Complete with Variable Frequency Drive, Necessary switchgears and required protections as per customer’s requirement.

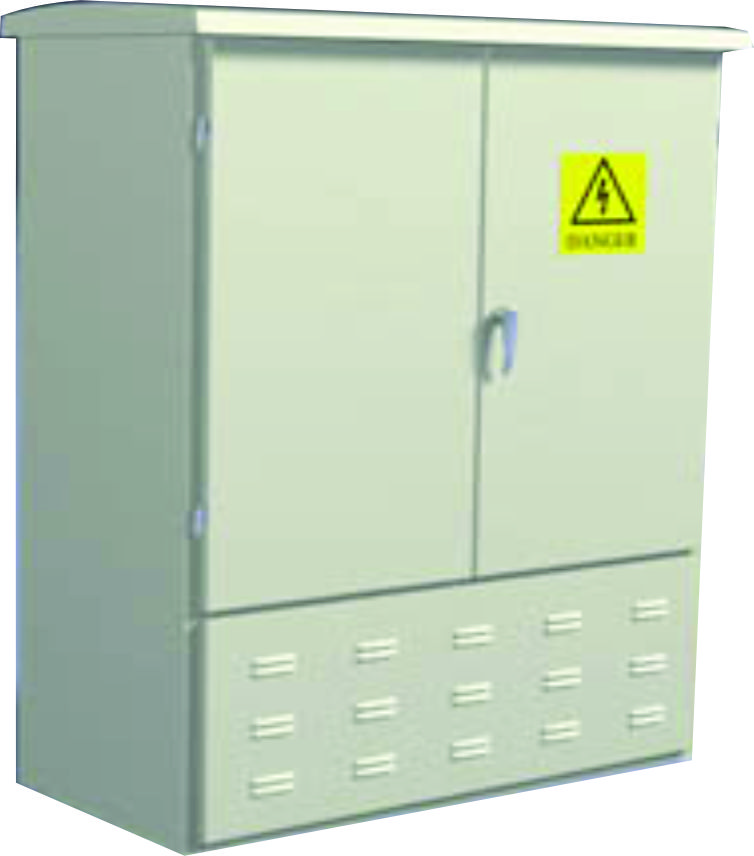

Feeder Pillars, Junction Boxes & Bay Marshaling Kiosks
• Outdoor Type with degree of protection up to IP 65
• Fabricated with CRCA sheet steel powder coated / Epoxy paint
• Aluminum / Stainless Steel / FRP / Electro Galvanized Sheet Enclosures on request.
• Transformer panel covering both HV and LV side protection

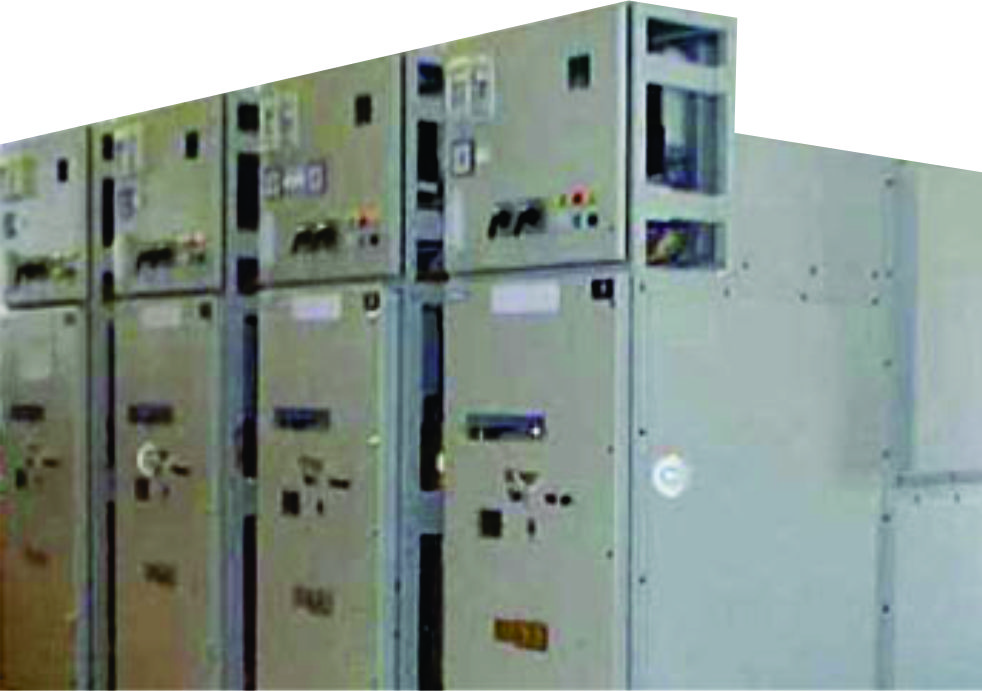

HT switchboards up to 36KV

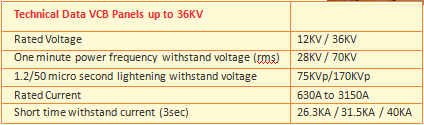

• 3.3/6.6/11/33KV VCB Panels#
• 11KV/33KV RMU#
• 11KV Isolator Panel#
KANDI offers / manufactures HT Switchboards with sourcing from OEMs# like Schneider / Siemens / Pascal make breakers. Suitable for medium voltage distribution application like transformer feeder, Line Feeder, motor feeder etc. in various industries, infrastructure and power utilities.



BUS DUCT

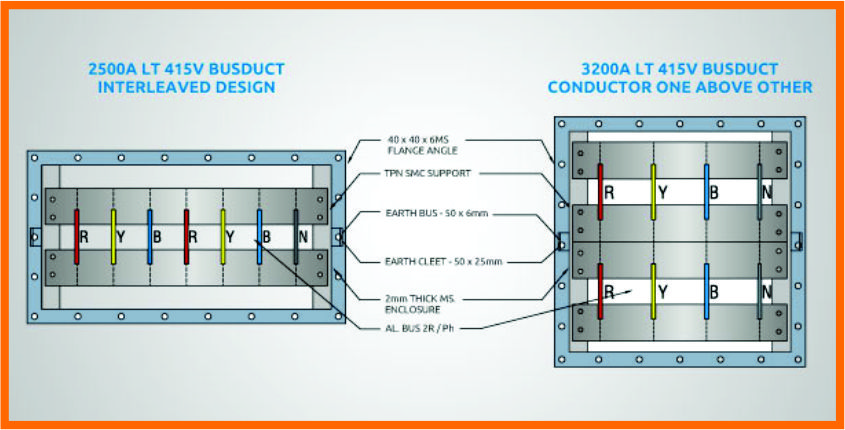

Non segregated Phase Bus duct (NSBD)
• Rated voltage 380V to 1100V AC and 1500V DC, Rated current up to 6300A for Low voltage application in sheet steel / Aluminum Alloy enclosure duly powder coated or epoxy painted, suitable for indoor/ outdoor installation with degree of protection up to IP 55.
• TP / TPN / 4P conventional / interleaved / Double-deck Aluminum or Copper bus bar design with FRP/ SMC / DMC insulator supports.
Short circuit withstands capacity 50/65 KA for 1 second and peak up to 150KA.

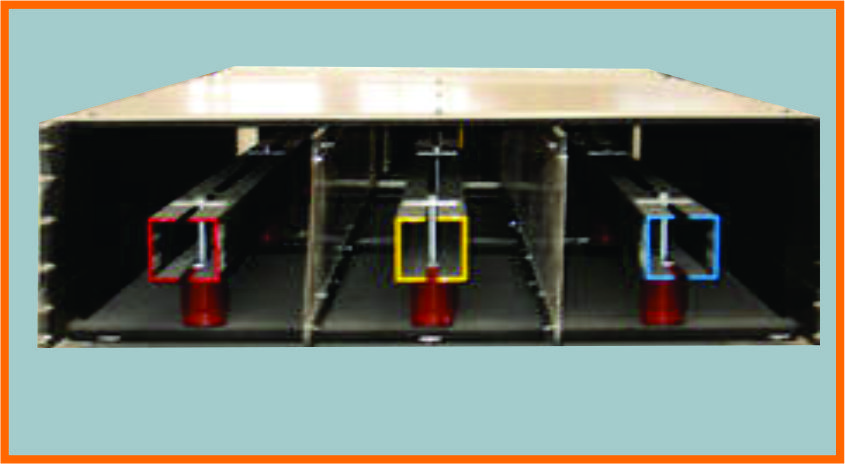

Segregated Phase Bus duct (SPBD)
• Rated voltage 3.3KV to 33KV Rated current up to 6300A for medium voltage application Aluminum Alloy enclosure duly powder coated or epoxy painted, suitable for indoor / outdoor installation with degree of protection up to IP 55.
• TP / TPN / 4P conventional / interleaved / Double-deck Aluminum bus bar design with Epoxy Resin cast high creepage insulators.
• Short circuit withstands capacity 50KA for 3 seconds
